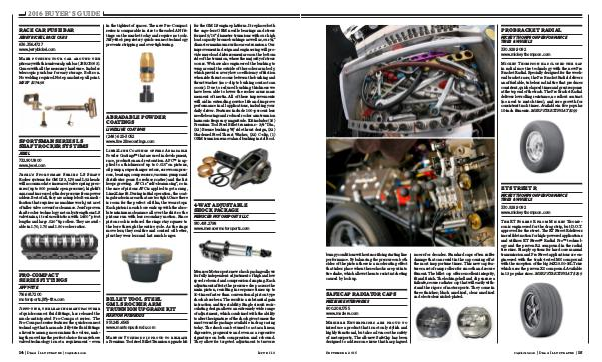

Drag Illustrated Issue 113, September 2016 | Page 126
2016 BUYER’S GUIDE
RACE CAR PUSH BAR
JERRY BICKEL RACE CARS
636.356.4727
www.jerrybickel.com
in the tightest of spaces. The new Pro-Compact
series is comparable in size to threaded AN fittings on the market today and require no tools.
Jiffy-tite’s proprietary quick-connect technology
prevents stripping and over-tightening.
Ma k e p u s h i n g y o u r c a r a r o u n d t h e
pits easy with this universal push bar (JBRC5063).
Comes with all the necessary hardware. Includes
telescopic push bar for easy storage. Bolts on.
No welding required. Note parachute pull point.
MSRP $174.98
ABRADABLE POWDER
COATINGS
LINE2LINE COATINGS
SPORTSMAN SERIES LS
SHAFT ROCKER SYSTEMS
JESEL
732.901.1800
www.jesel.com
Je s e l’ s S p o r t s m a n S e r i e s L S S h a f t
Rocker systems for GM LS3, L76 and L92 heads
will accommodate increased valve spring pressures (up to 800 pounds open pressure), high-lift
cams and increased cylinder pressure from power
adders. Best of all, they are a simple bolt-on modification that requires no machine work, just a set
of taller valve covers for clearance. Jesel’s proven
shaft rocker technology not only strengthens LS
valvetrains, it reduces friction with 1.450” pivot
lengths and large .520” tip rollers. They are available in 1.70, 1.75 and 1.80 rocker ratios.
(248) 625-3052
www.line2linecoatings.com
Line2Line Coatings offers Abradable
Powder Coatings™ that are used in development,
race, production and restoration. APC™ is applied to a thickness of up to 0.015” on pistons,
oil pumps, supercharger rotors, screw compressors, bearings, compressors, vacuum pumps and
distributor gears (to reduce scatter) and the list
keeps growing. APC is “self-clearancing”, so in
the case of pistons APC is applied to get a snug,
Line2Line fit. During initial operation, the coating abrades in areas that are too tight. Once there
is room for the perfect oil film, the wear stops.
Each piston in each bore ends up with the absolute minimum clearance all over the skirt so the
pistons run with less secondary motion. Since
piston rock is reduced the rings stay squarer to
the bore through the entire cycle. As the rings
move less, they seal fire and control oil better,
plus they wear less and last much longer.
PRO-COMPACT
SERIES FITTINGS
JIFFY-TITE
716.681.7200
motorsports.jiffy-tite.com
Jiffy-tite, the leading manufacturer
of quick-connect fluid fittings, has released the
much-anticipated Pro-Compact series. The
Pro-Compact series features the quick-connect
technology that has made Jiffy-tite fluid fittings
a favorite among racers minus the valves, making the new line the perfect choice for anywhere
valved technology is not a requirement – even
14 | D r a g
I l l u s t r a t e d | DragIllustrated.com
BILLET TOOL STEEL
GM LS ROCKER ARM
TRUNNION UPGRADE KIT
MANTON PUSHRODS
951.245.6565
www.mantonpushrods.com
Manton Pushrods is proud to release
a Premium Tool steel Billet Trunnion upgrade kit
for the GM LS engine platform. It replaces both
the cage-less OEM needle bearings and stress
formed 9/16” diameter trunnions with our high
load capacity bronze bushings as well as, our ¾”
diameter maximum surface area trunnions. Our
improvement in design and engineering will provide more load disbursement area on the bottom
side of the trunnion, where the majority of stress
occurs. We have also engineered the bushing to
wrap around the outside of the rocker arm body,
which provides a very low co-efficiency of friction
when side thrust occurs between the bushing and
thrust washer (no c-clip to bushing contact can
occur). Due to reduced bushing thickness we
have been able to lower the
