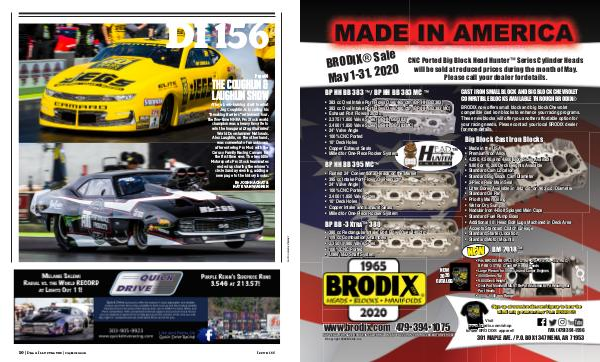

Drag Illustrated Issue 156, May 2020 | Page 11
BRODIX® Sale
May 1-31, 2020
BP HH BB 383 ™ / BP HH BB 383 MC ™
• 383 cc Oval Intake Port Flows Over 465 cfm (BP HH BB 383)
• 383 cc Oval Intake Port Flows Over 480 cfm (BP HH BB 383 MC)
• Exhaust Port Flows 320 cfm
• 2.375 / 1.850 Valve Sizes (BP HH BB 383)
• 2.400 / 1.850 Valve Sizes (BP HH BB 383 MC)
• 24° Valve Angle
• 100% CNC Ported
• 10° Deck Holes
• Copper Exhaust Seats
• Milled for One-Piece Rocker System
BP HH BB 395 MC™
• Fastest 24° Conventional Heads on the Market
• 395 cc Intake Port Flows Over 485 cfm
• 24° Valve Angle
• 100% CNC Ported
• 2.400 / 1.850 Valve Sizes
• 10° Deck Holes
• Copper Intake and Exhaust Seats
• Milled for One-Piece Rocker System
BP BB-3 XTRA™ 380
• 380 cc Rectangular Intake Port Flows Over 440 cfm
• 119 cc Combustion Chambers
• 2.350 / 1.880 Valve Sizes
• 100% CNC Ported
• Uses T&D Shaft System
CNC Ported Big Block Head Hunter™ Series Cylinder Heads
will be sold at reduced prices during the month of May.
Please call your dealer for details.
NEW
2020
CATALOG
™
CAST IRON SMALL BLOCK AND BIG BLOCK CHEVROLET
COMPATIBLE BLOCKS AVAILABLE THROUGH BRODIX®
BRODIX now offers small block and big block Chevrolet
compatible cast iron blocks to enhance your racing programs.
These new blocks will offer you another affordable option for
your racing needs. Please contact your local BRODIX dealer
for more details.
Big Block Cast Iron Blocks
• Made in the USA
• Premium Iron Alloy
• 4.250, 4.500, and 4.600 Bore Sizes Available
• 9.800 or 10.200 Deck Heights Available
• Standard Cam Location
• Standard Big Block Cam Diameter
• 2-Piece Rear Main Seal
• Lifter Bores Available in .842 o.d. or .903 o.d. Diameter
• Standard Oil Pan
• Priority Main Oiling
• Wet or Dry Sump
• Nodular Iron 4-Bolt Splayed Main Caps
• Standard Fuel Pump Boss
• Additional 10° Head Bolt Lugs Machined in Deck Area
• Accepts Standard Clutch Linkage
• Standard Starter Location
• Standard Motor Mounts
NEW
BM 2018™
• Fits BRODIX BB-2 PLUS, -2 XTRA, -2 X, -3 XTRA, -3 XTRA O,
BP BB -3 XTRA O, and BP HH BB Heads
• Large Plenum for 598 cu in and Larger Engines
• 4500 Series Top
• 9.800 Deck Height
• Oval Port Manifold, MUST Be Port Matched to Fit Rectangular
Port Heads
• 4000 – 8500 rpm Range
www.brodix.com
479•394•1075
Sign up at www.brodix.com/signup to hear the
latest and greatest news from BRODIX®!
Visit
www.brodix.com/shop
to see BRODIX® apparel! FAX: (479) 394-1996
NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE
© Copyright 2020 Brodix, Inc.
301 MAPLE AVE. / P.O. BOX 1347 MENA, AR 71953
