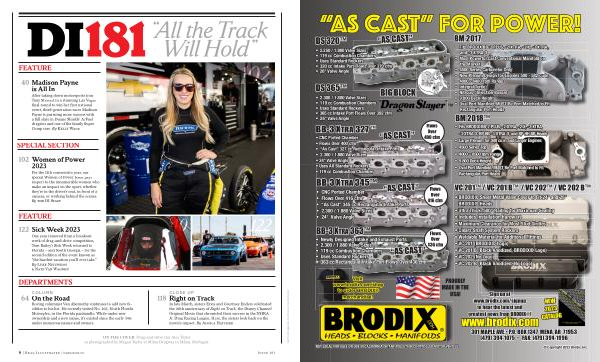

“ AS CAST ” For Power !
DS 320™
• 2.250 / 1.880 Valve Sizes
• 119 cc Combustion Chambers
• Uses Standard Rockers
• 320 cc Intake Port Flows Over 370 cfm
• 26 ° Valve Angle
DS 365™
• 2.300 / 1.880 Valve Sizes
• 119 cc Combustion Chambers
• Uses Standard Rockers
• 365 cc Intake Port Flows Over 392 cfm
• 26 ° Valve Angle
BB-3 XTRA 327
327 ™
“ AS CAST ”
BIG BLOCK
“ AS CAST ”
• CNC Ported Chamber
• Flows Over 400 cfm
• “ As Cast ” 327 cc Rectangular Intake Ports
• 2.300 / 1.880 Valve Sizes
• 24 ° Valve Angle
• Uses All Standard Rockers
• 119 cc Combustion Chamber
BB-3 XTRA 345™
“ AS CAST ”
• CNC Ported Chamber
• Flows Over 416 cfm
• “ As Cast ” 345 cc Rectangular Intake Ports
• 2.300 / 1.880 Valve Sizes
• 24 ° Valve Angle
BB-3 XTRA
363
363™
Flows Over 400 cfm
Flows Over 416 cfm
Flows
• Newly Designed Intake and Exhaust Ports Over
• 2.300 / 1.880 Valve Sizes
436 cfm
• 119 cc Combustion Chambers
• Uses Standard Rockers
• 363 cc Rectangular Intake Port Flows Over 436 cfm
“ AS CAST ”
™
BM 2017
• Fits BRODIX BB-2 PLUS , -2 XTRA , -2 X , -3 XTRA , and -3 XTRA O
• Most Powerful Cast Conventional Manifold on the Market
• 4500 Series Carburetor Only
• New Plenum Design for Engines 500 - 582 cu in
• 4000 - 8400 rpm Range
• Integral Turtle
• Nitrous / Injection Bosses
• 9.800 Deck Height
• Oval Port Manifold , MUST Be Port Matched to Fit Rectangular Port Heads
BM 2018™
• Fits BRODIX BB-2 PLUS , -2 XTRA , -2 X , -3 XTRA , -3 XTRA O , BP BB -3 XTRA O , and BP HH BB Heads
• Large Plenum for 598 cu in and Larger Engines
• 4500 Series Top
• 4000 – 8500 rpm Range
• 9.800 Deck Height
• Oval Port Manifold , MUST Be Port Matched to Fit Rectangular Port Heads
VC 201™ / VC 201 B™ / VC 202™ / VC 202 B™
• BRODIX ® Sheet Metal Valve Cover to Fit 24 ° and 26 ° BRODIX ® Heads
• Ultra Thick . 500 ” Railing for Maximum Sealing
• Includes Installation Hardware
• Maximum Clearance for Most Stud Girdles
• Clears Shaft System Rockers
• Weldable Material for Additional Fittings
• VC 201 ( BRODIX ® Logo )
• VC 201 B ( Black Anodized , BRODIX ® Logo )
• VC 202 ( No Logo )
• VC 202 B ( Black Anodized , No Logo )
Visit www . brodix . com / shop to order BRODIX ®
merchandise !
PROUDLY MADE IN THE USA !
Sign up at www . brodix . com / signup to hear the latest and greatest news from BRODIX ®!
www . brodix . com
NEW 2023 CATALOG
301 MAPLE AVE .• P . O . BOX 1347 MENA , AR 71953 ( 479 ) 394-1075 • FAX : ( 479 ) 394-1996
NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE © Copyright 2023 Brodix , Inc .
