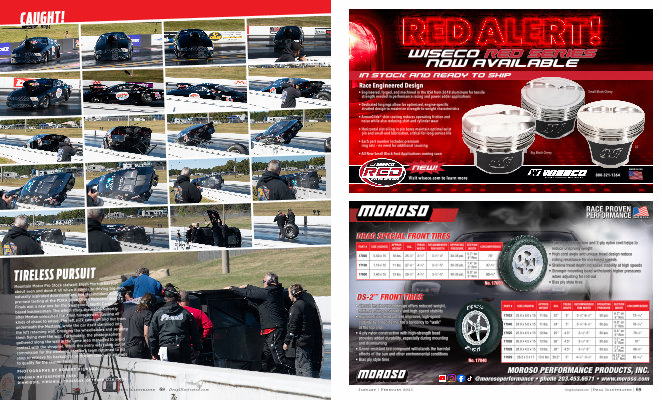

Race Engineered Design
wiseco red series now available in stock and ready to ship
• Engineered , forged , and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications
• Dedicated forgings allow for optimized , engine-specific strutted design to maximize strength-to-weight characteristics
• ArmorGlide ® skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear
• Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication , critical for long service life
Small Block Chevy
• Each part number includes premium ring sets – no need for additional sourcing
• All New Small Block Ford Applications coming soon Big Block Chevy
LS new !
Visit wiseco . com to learn more
800-321-1364
MADE IN USA
|
|
|
PERFORMANCE RACE PROVEN PERFORMANCE |
|
DRAG SPECIAL FRONT TIRES
PART # SIZE ( INCHES )
APPROX . WEIGHT
DIA .
TREAD WIDTH
RECOMMENDED RIM WIDTH
OPERATING PRESSURE
17050 5.50 x 15 10 lbs . 25- 1 ⁄ 4 " 3- 1 ⁄ 2 " 3- 1 ⁄ 2 " -4 " 30-35 psi .
17100 7.10 x 15 11 lbs . 27- 3 ⁄ 4 " 4- 1 ⁄ 8 " 3- 1 ⁄ 2 " -5 " 30-35 psi .
17600 7.60 x 15 13 lbs . 29- 1 ⁄ 4 " 4- 5 ⁄ 8 " 3- 1 ⁄ 2 " -5 " 30-35 psi .
|
SECTION WIDTH
5.7 " on 4 " Rim
7.4 " on 5 " Rim
8.0 " on 5 " Rim
|
CIRCUMFERENCE
78 "
87- 3 ⁄ 4 "
90- 3 ⁄ 4 "
No . 17050
|
• Tubeless construction and 2-ply nylon cord helps to reduce unsprung weight
• High cord angle and unique tread design reduce rolling resistance for increased speeds
• Shallow tread depth increases stability at high speeds
• Stronger mounting bead withstands higher pressures when adjusting for roll-out
• Bias ply style tires
|
DS-2 ™ FRONT TIRES
• Aircraft inspired tread design offers reduced weight , minimal rolling resistance and high-speed stability
• Asymmetrical tread pattern improves high-speed stability by reducing the tire ’ s tendency to " walk " at the top end
• 4-ply nylon construction with high-strength bead provides added durability , especially during mounting and dismounting
• Ozone-resistant tire compound withstands the harmful effects of the sun and other environmental conditions
• Bias ply style tires
January / February 2025
No . 17040
PART # SIZE ( INCHES )
APPROX . WEIGHT
DIA .
TREAD WIDTH
RECOMMENDED RIM WIDTH
OPERATING PRESSURE
17023 23.0 x 5.0 x 15 11 lbs . 23 " 5 " 3- 1 ⁄ 2 " -6- 1 ⁄ 2 " 30 psi . 17040 24.0 x 5.0 x 15 11 lbs . 24 " 5 " 3- 1 ⁄ 2 " -6- 1 ⁄ 2 " 30 psi . 17025 25.0 x 4.5 x 15 12 lbs . 25 " 4.5 " 3- 1 ⁄ 2 " -5 " 30 psi . 17026 26.0 x 4.5 x 15 12 lbs . 26 " 4.5 " 3- 1 ⁄ 2 " -5 " 30 psi . 17028 28.0 x 4.5 x 15 13 lbs . 28 " 4.5 " 3- 1 ⁄ 2 " -5 " 30 psi . 17029 26.2 x 5 x 17 13.5 lbs . 26.2 " 5 " 4- 1 ⁄ 2 " -5- 1 ⁄ 2 " 30 psi .
SECTION WIDTH
6.2 " on 5 " Rim
6.8 " on 5 " Rim
6.4 " on 5 " Rim
7.1 " on 5 " Rim
7.7 " on 5 " Rim
6.12 " on 4.5 " Rim
CIRCUMFERENCE
72- 7 ⁄ 16 " 76- 7 ⁄ 16 " 78- 1 ⁄ 4 " 81 " 86- 3 ⁄ 8 " 82- 5 ⁄ 16 "
MOROSO PERFORMANCE PRODUCTS , INC .
@ morosoperformance • phone 203.453.6571 • www . moroso . com
DragIllustrated . com | Drag Illustrated | 69
