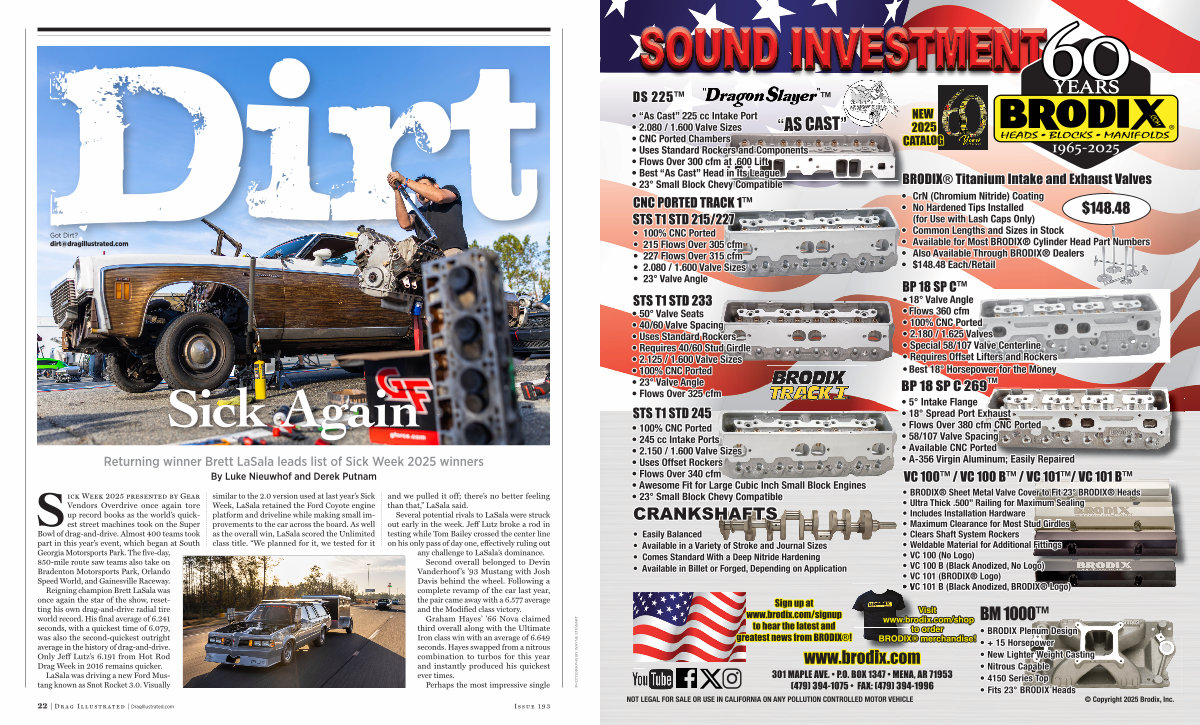

DS 225™
•“ As Cast” 225 cc Intake Port
• 2.080 / 1.600 Valve Sizes
• CNC Ported Chambers
• Uses Standard Rockers and Components
• Flows Over 300 cfm at. 600 Lift
• Best“ As Cast” Head in Its League
• 23 ° Small Block Chevy Compatible
CNC PORTED TRACK 1™ STS T1 STD 215 / 227
• 100 % CNC Ported
• 215 Flows Over 305 cfm
• 227 Flows Over 315 cfm
• 2.080 / 1.600 Valve Sizes
• 23 ° Valve Angle
STS T1 STD 233
• 50 ° Valve Seats
• 40 / 60 Valve Spacing
• Uses Standard Rockers
• Requires 40 / 60 Stud Girdle
• 2.125 / 1.600 Valve Sizes
• 100 % CNC Ported
• 23 ° Valve Angle
• Flows Over 325 cfm
STS T1 STD 245
“ AS CAST”
• 100 % CNC Ported
• 245 cc Intake Ports
• 2.150 / 1.600 Valve Sizes
• Uses Offset Rockers
• Flows Over 340 cfm
• Awesome Fit for Large Cubic Inch Small Block Engines
• 23 ° Small Block Chevy Compatible
CRANKSHAFTS
• Easily Balanced
• Available in a Variety of Stroke and Journal Sizes
• Comes Standard With a Deep Nitride Hardening
• Available in Billet or Forged, Depending on Application
BP 18 SP C™
• 18 ° Valve Angle
• Flows 360 cfm
• 100 % CNC Ported
• 2.180 / 1.625 Valves
• Special 58 / 107 Valve Centerline
• Requires Offset Lifters and Rockers
• Best 18 ° Horsepower for the Money
BP 18 SP C 269™
• 5 ° Intake Flange
• 18 ° Spread Port Exhaust
• Flows Over 380 cfm CNC Ported
• 58 / 107 Valve Spacing
• Available CNC Ported
• A-356 Virgin Aluminum; Easily Repaired
VC 100™ / VC 100 B™ / VC 101™ / VC 101 B™
• BRODIX ® Sheet Metal Valve Cover to Fit 23 ° BRODIX ® Heads
• Ultra Thick. 500” Railing for Maximum Sealing
• Includes Installation Hardware
• Maximum Clearance for Most Stud Girdles
• Clears Shaft System Rockers
• Weldable Material for Additional Fittings
• VC 100( No Logo)
• VC 100 B( Black Anodized, No Logo)
• VC 101( BRODIX ® Logo)
• VC 101 B( Black Anodized, BRODIX ® Logo)
Sign up at Visit www. brodix. com / signup www. brodix. com / shop BM 1000™ to hear the latest and to order
• BRODIX Plenum Design greatest news from BRODIX ®!
BRODIX ® merchandise!
• + 15 Horsepower
• New Lighter Weight Casting www. brodix. com
• Nitrous Capable 301 MAPLE AVE. • P. O. BOX 1347 • MENA, AR 71953
• 4150 Series Top( 479) 394-1075 • FAX:( 479) 394-1996
• Fits 23 ° BRODIX Heads
NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE
™
NEW 2025 CATALOG
BRODIX ® Titanium Intake and Exhaust Valves
• CrN( Chromium Nitride) Coating
• No Hardened Tips Installed
$ 148.48
( for Use with Lash Caps Only)
• Common Lengths and Sizes in Stock
• Available for Most BRODIX ® Cylinder Head Part Numbers
• Also Available Through BRODIX ® Dealers
• $ 148.48 Each / Retail
© Copyright 2025 Brodix, Inc.
